Description

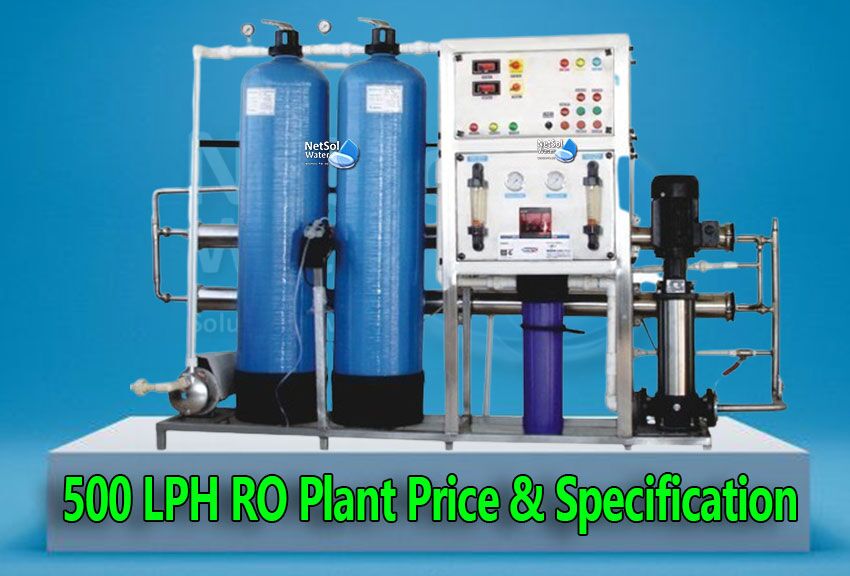

500 LPH RO Plants – Product Details:
| Minimum Order Quantity | 1 Unit |
| Plant Application | Industrial RO Plant |
| Design | Standard |
| Installation/Civil Work | Included |
| Antiscalant Dosing Pump | Yes |
| Automatic Grade | Automatic |
| RO Capacity (Liter/hour) | 500 (Liter/hour) |
| Number of Membranes in RO | 2 |
| Material of Construction Skid | Stainless Steel |
| Voltage Requirement | 220 V |
Main Features 500 LPH RO Plant:
Low Energy Consumption – Energy is a very costly resource and also has a high impact on the environment hence We have designed the water plants to consume less energy than other RO water plants. Since we use the best quality electrical components and pumps.
Durable Product – We believe in providing the best quality products. We ensure high-quality standards at every stage of production and at the RO Plant Design stage hence this 500 LPH RO Plant is a durable product and requires very little maintenance.
Warranty – We provide a year full warranty to make your you and your team do not suffer or waste your time to figure out how to get it service or repair.
Non–Corrosive – The skid provides with this 500 LPH RO system is made up of stainless steel. So the product is corrosion free unlike other brands with MS or powder-coated frames.
Mineral and Alkaline – Being the health of our customers at our topmost priority we provide alkaline water purifiers with mineral technology without adding chemicals. Hence the water purifier generates water that is healthy as well as pure.
Installation and Services – We provide free installation for our RO water plants. Our products are having a year’s warranty so you can order without any hesitation.
Special Features:
- Energy-efficient design so less power consumption
- low wastage hence become environment-friendly
- We design the plant according to standards hence require low maintenance
Main Usage:
- School, College, and other educational institutes.
- Restaurant and Hotels
- For Industrial and business purposes like corporate offices, Manufacturing plants, Pharmaceutical purposes also.
- Commercial buildings and malls etc.
Detailed Specification 500 LPH RO Plants:
| RAW WATER PUMP | 01 No. |
| Moc
Voltage Make |
( CI Centrifugal)
220/1-phase/50hz CRI/Kirloshkkar/ Equiv. |
| MULTIGRADE FILTER (MGF) | 01 No |
| MOC
Size Flow Controls Make |
FRP
12”x54” MPV 3/4” Pentair and Eqv. |
| ACTIVATED CARBON FILTER (ACF) | 01 No. |
| MOC
Size Flow Controls Media Make |
FRP
12”x54” MPV 3/4” Activated Carbon Pentair and Eqv. |
| ANTISCALANT DOSING PUMP | 01 No. |
| Moc
Make Type |
PP
E-dose Equiv. Diaphragm |
| MICRON FILTER | 02 No. |
| Moc
Size Cartridge Micron Rating |
PP
20” Jumbo 20” String Wound 05 Micron |
| MEMBRANE HOUSING | 02 Nos. |
| Moc
Make Testing Construction |
FRP Food Grade
Altima/ Aventura/ equv. Pressure 500 psi End Port Type |
| RO MEMBRANES | 02 Nos. |
| Type of Membrane
Size Make |
Thin Film Composite
4” Dia 40” Length Dow Equiv. |
| HIGH-PRESSURE PUMP | 01 No. |
| Type of Pump
Make |
Centrifugal Multistage Vertical
CRI/Kirloskar/ Equiv. |
| CONTROL INSTRUMENTS | |
| Flow Meter
Pressure Gauge LPS, HPS, TDS Meter |
– 2 Nos.
– 2 Unit – 1 Unit Each |
| CONTROL PANEL | 01 No. |
| SKID | SS |
| DOSING TANK | 01 Nos. |
| PIPING | High-Pressure pipeline |
